Product Introduction

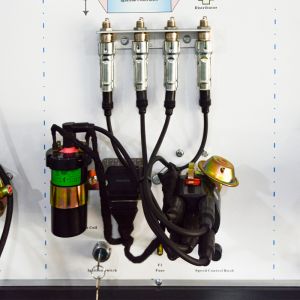

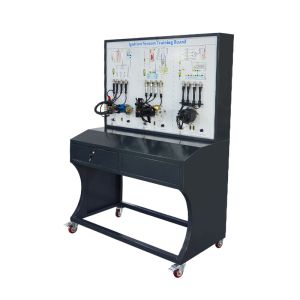

This automotive electrical trainer board features three typical ignition systems (contact point, Hall-effect electronic, and distributorless grouped ignition) using authentic components to demonstrate engine ignition principles. As essential automotive education equipment, this automotive electrical trainer comprehensively displays the structure and working processes of various ignition systems. Ideal for vocational schools and technical training centers, this automotive teaching equipment perfectly meets the teaching requirements for engine ignition system theory and maintenance training.
Key Features & Specifications
| Feature | Description |
|---|---|
| Three Ignition Systems | Contact point, Hall-effect electronic, and distributorless grouped ignition |
| Interactive Operation | Motor-driven operation with spark plug ignition demonstration |
| Visual Indicators | Power indicators and switches for each ignition system |
| Measurement Terminals | Test points for voltage, current, resistance, and frequency signals |
| Fault Simulation | Remote-controlled fault setting system (10m range) |
| Power Supply | AC 220V to DC 12V conversion (no battery required) |
| Durable Construction | 4mm aluminum composite panel with steel frame |
| Dimensions | 1200×600×1700mm (L×W×H) |
Training Objectives
As a professional automotive training equipment manufacturer, we provide this comprehensive automotive electrical training simulator with complete teaching resources. The automotive training board combines theoretical learning with practical operation, making it an ideal automotive teaching aid for ignition system education and automotive diagnostic trainer applications.
